Sinotec 5.12kWh Lithium Battery | 51.2V 100Ah

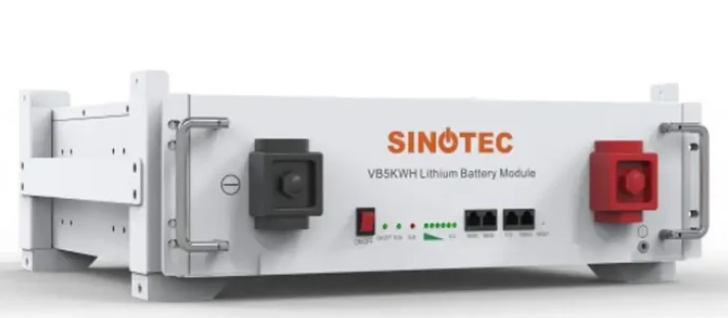

Sinotec 5.12kWh Battery – 51.2V 100Ah

The Sinotec 5.12kWh Lithium Battery provides reliable energy storage for solar and backup power systems. It has a nominal voltage of 51.2V and a capacity of 100Ah. Therefore, it suits many residential and light commercial energy storage applications.

The battery uses Lithium Iron Phosphate (LiFePO₄) technology. This chemistry provides stable performance for regular charging and discharging. In addition, an integrated BMS manages important battery functions.

Sinotec 5.12kWh Lithium Battery Performance

The battery provides Sinotec 5.12kWh of nominal energy capacity. In addition, it supports a maximum continuous discharge current of 100A.

Therefore, the battery can provide substantial power to a correctly sized inverter system. However, actual system output also depends on the inverter and installation design.

The battery also supports charging currents of up to 100A, according to the supplied specifications. As a result, it can recharge efficiently when sufficient solar or grid power is available.

LiFePO₄ Battery Technology

LiFePO₄ technology provides dependable energy storage for daily solar use. Furthermore, the supplied specifications list more than 6,000 charge and discharge cycles.

This cycle figure applies at the stated Depth of Discharge and operating conditions. Therefore, actual battery life can vary with usage, temperature, charging settings, and installation conditions.

In addition, the battery requires minimal routine maintenance. This makes it a practical choice for modern solar energy systems.

Smart Battery Management System

The integrated Smart BMS monitors important battery operating conditions. For example, it monitors individual cell performance, voltage, current, and temperature.

In addition, the BMS provides protection against overcharging and excessive discharge. It also helps protect against short circuits and abnormal temperature conditions.

As a result, the BMS plays an important role in managing safe battery operation.

Communication and Inverter Integration

The battery provides CAN, RS485, and RS232 communication ports. Therefore, compatible inverters can exchange operating information with the battery.

However, communication compatibility depends on the inverter model and battery protocol. Customers should confirm compatibility before installation.

This is especially important when using BMS communication for automatic charging and discharge control.

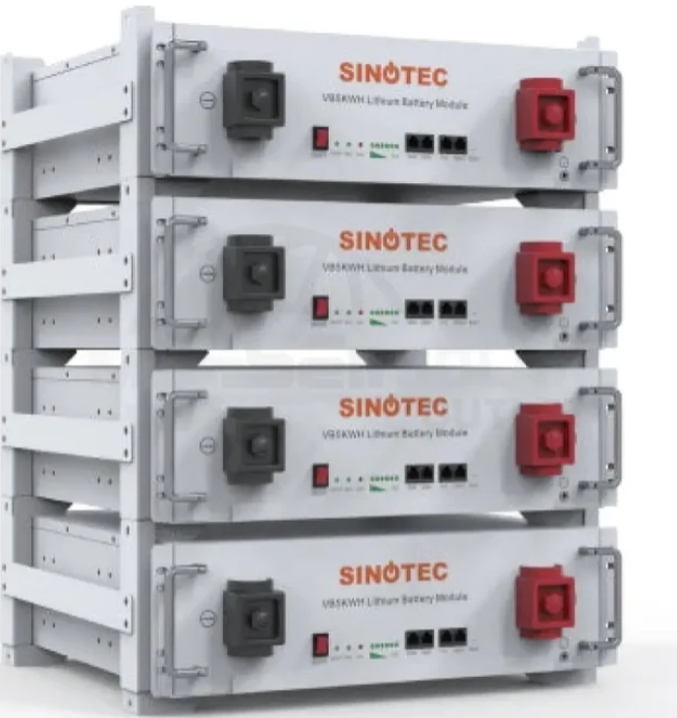

Expandable Energy Storage

Users can connect compatible battery modules in parallel to increase total storage capacity. According to the supplied specifications, the system can support up to 16 modules.

For example, two 5.12kWh modules provide approximately 10.24kWh of nominal storage. Four modules provide approximately 20.48kWh.

Therefore, customers can expand the system as their energy requirements increase.

Sinotec 5.12kWh Lithium Battery Specifications

Nominal Energy: 5.12kWh
Nominal Voltage: 51.2V
Battery Capacity: 100Ah
Battery Chemistry: LiFePO₄
Maximum Continuous Discharge: 100A
Maximum Charge Current: Up to 100A
Cycle Life: 6,000+ Cycles*
Communication: CAN / RS485 / RS232
Parallel Expansion: Up to 16 Modules*
Discharge Temperature: -20°C to 55°C
Battery Management: Integrated Smart BMS

*According to the supplied product specifications. Confirm the exact model datasheet before installation.

Solar and Backup Applications

The Sinotec 5.12kWh Lithium Battery can support residential and light commercial solar installations. For example, it can store solar energy for use when solar production falls.

In addition, the battery can provide backup energy during power interruptions when connected to a compatible inverter. Multiple units can also increase the available backup capacity.

Overall, this battery combines 5.12kWh capacity, 51.2V architecture, LiFePO₄ technology, and smart BMS management. Therefore, it provides a flexible energy storage option for compatible solar and backup systems.
