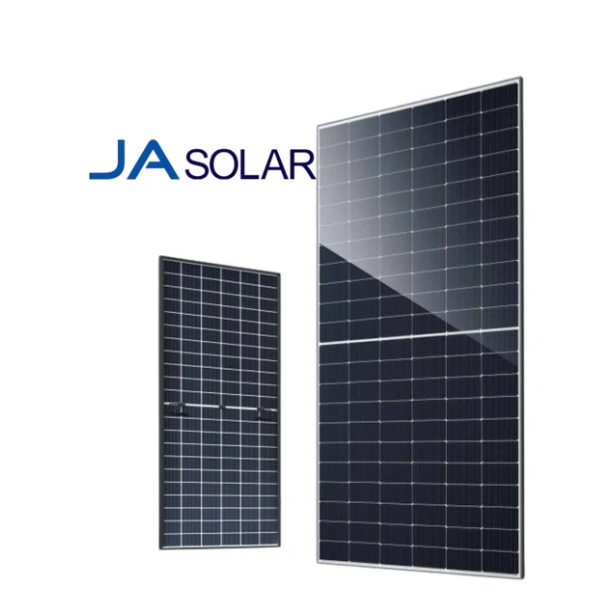

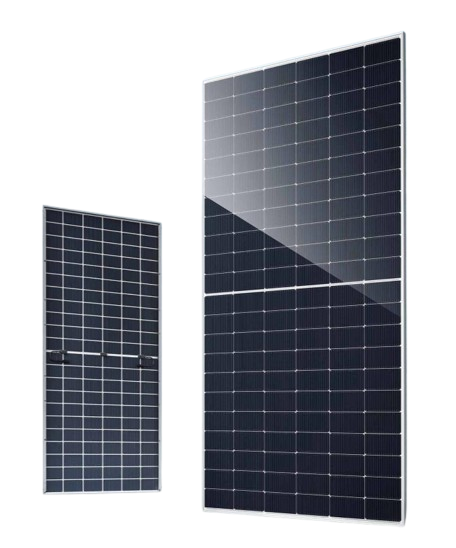

JA Solar 715W Bifacial Mono Solar Panel
Key Performance Features
Ultra-High Output: 715W peak power using high-efficiency N-Type cells.
- Bifacial Power Gain: Generates up to 10%–30% additional energy from the rear side (80% ± 10% Bifaciality).
- N-Type TOPCon Technology: Exceptional low-light response, better temperature coefficient (-0.29%/°C), and significantly lower Light Induced Degradation (LID).
- Robust Glass-Glass Build: Dual 2.0mm heat-strengthened glass ensures maximum durability and PID resistance.
- Extended Reliability: 12-Year Product Warranty and a 30-Year Linear Power Warranty (guaranteeing 87.4% output after 30 years).
R2 015,00
product description
Key Performance Features
Ultra-High Output: 715W peak power using high-efficiency N-Type cells.
- Bifacial Power Gain: Generates up to 10%–30% additional energy from the rear side (80% ± 10% Bifaciality).
- N-Type TOPCon Technology: Exceptional low-light response, better temperature coefficient (-0.29%/°C), and significantly lower Light Induced Degradation (LID).
- Robust Glass-Glass Build: Dual 2.0mm heat-strengthened glass ensures maximum durability and PID resistance.
- Extended Reliability: 12-Year Product Warranty and a 30-Year Linear Power Warranty (guaranteeing 87.4% output after 30 years).
📊 Technical Specifications (Datasheet)
Electrical Parameter (STC),Value
Rated Maximum Power (Pmax),715 W
Open Circuit Voltage (Voc),48.80 V
Maximum Power Voltage (Vmp),41.00 V
Short Circuit Current (Isc),18.55 A
Maximum Power Current (Imp),17.44 A
Module Efficiency,23.0%
Power Tolerance,0 ~ +3%
| Mechanical Details | Value |
| Cell Type | Mono N-Type TOPCon |
| No. of Cells | 132 (6 x 22) |
| Dimensions | 2384 ± 2mm x 1303 ± 2mm x 33 ± 1mm |
| Weight | 38.2 kg |
| Front/Back Glass | 2.0mm / 2.0mm Heat-strengthened glass |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 Diodes |
| Connectors | MC4-EVO2A / QC 4.10-351 |
| Operating Conditions | Value |
| Maximum System Voltage | 1500V DC |
| Operating Temperature | -40°C to +85°C |
| Maximum Static Load (Front) | 5400 Pa (Snow) |
| Maximum Static Load (Back) | 2400 Pa (Wind) |
| Max Series Fuse Rating | 35 A |
