Dyness Stack280 (S51280) 215.04kwh HV Battery set

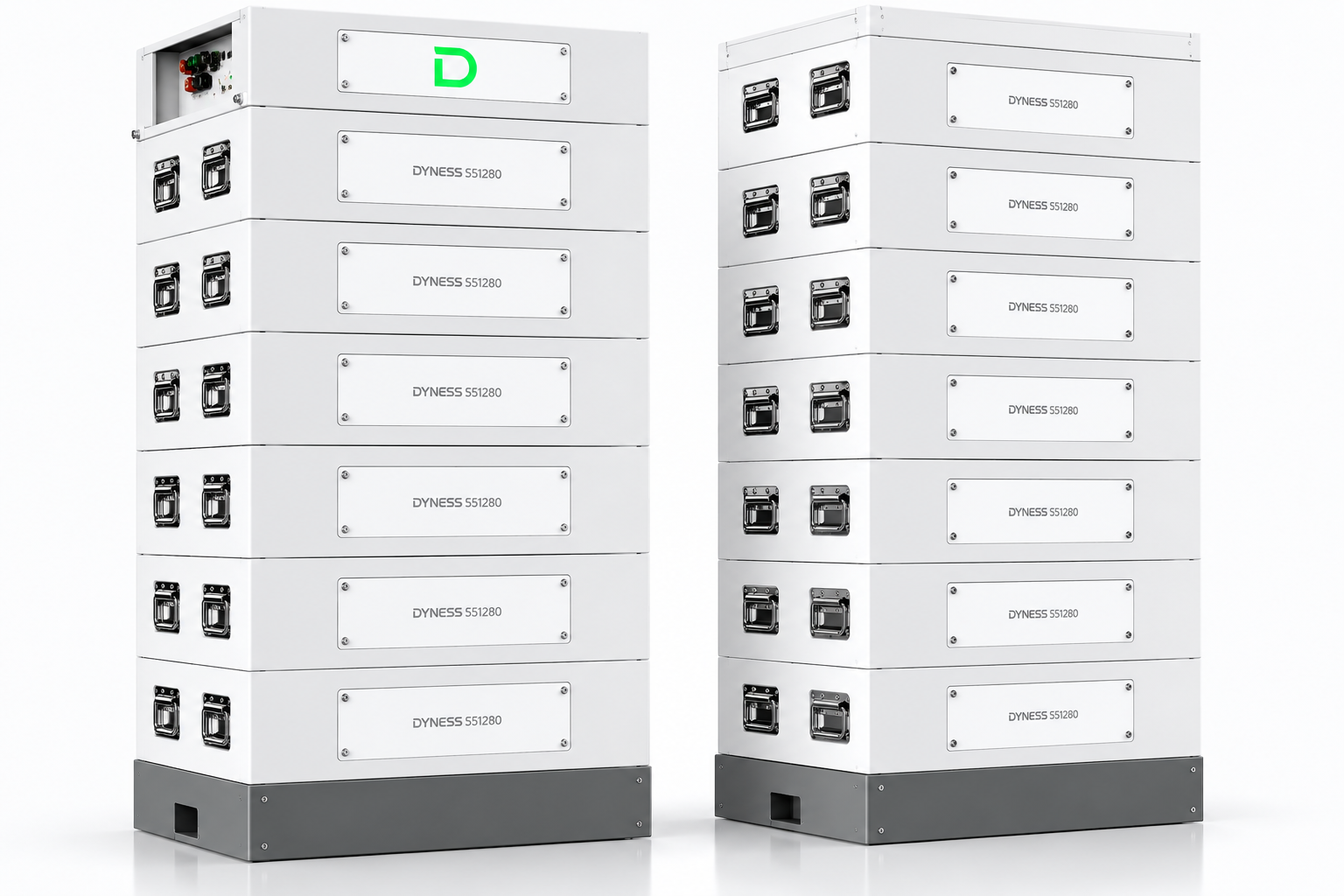

Dyness STACK280 S51280 – 215.04kWh High Voltage Battery System

The Dyness STACK280 215.04kWh is a premium commercial and industrial high-voltage energy storage solution designed for large-scale solar, backup power, peak shaving, and energy management applications. Built with advanced LiFePO₄ (LFP) technology, it delivers exceptional safety, reliability, and long-term performance. The system features a modular plug-and-play stacking design for quick installation and future expansion. (za.dyness.com)

What’s Included

✅ 15 × Dyness S51280 Battery Modules
✅ 1 × Dyness BDU (Battery Distribution Unit)
✅ Total Storage Capacity: 215.04kWh
✅ High Voltage Stack Configuration

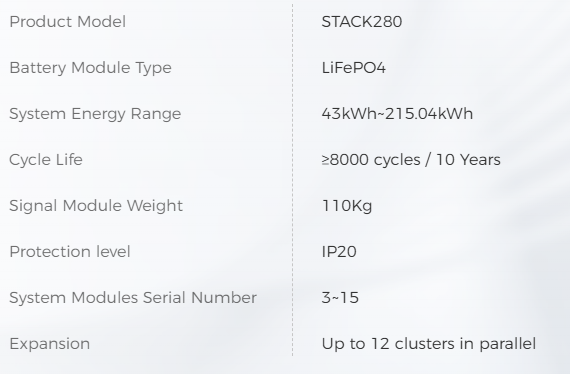

Key Specifications

• Battery Model: Dyness S51280
• Battery Chemistry: LiFePO₄ (LFP)
• Capacity per Module: 14.336kWh
• Module Voltage: 51.2V
• Module Capacity: 280Ah
• Total System Capacity: 215.04kWh
• Usable Energy: 204.3kWh
• Cycle Life: 8000+ Cycles
• Depth of Discharge (DoD): 95%
• Communication: CAN / RS485
• Cooling Method: Forced Air Cooling
• Protection Rating: IP20
• Warranty: 10 Years

Features

✔ Includes 15 × S51280 Modules + 1 × BDU
✔ 215.04kWh Commercial Energy Storage System
✔ High-Efficiency LiFePO₄ Technology
✔ 8000+ Cycle Life
✔ Built-In Aerosol Fire Suppression System

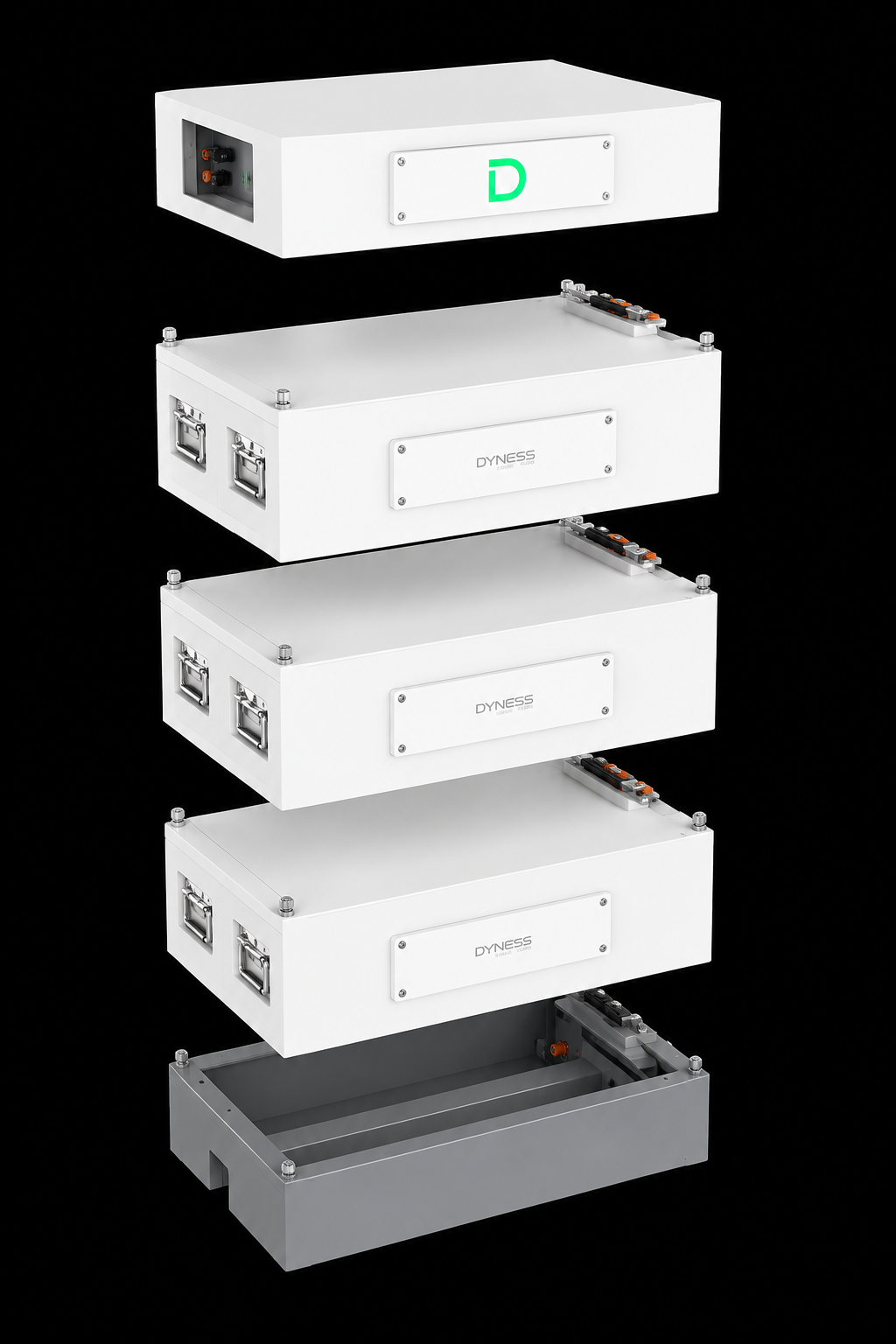

✔ Plug-and-Play Stack Design
✔ Supports Up To 12 Clusters In Parallel
✔ Expandable Up To 2.58MWh
✔ Intelligent Battery Management System (BMS)
✔ Compatible With Leading High-Voltage Hybrid Inverters
✔ Ideal For Factories, Warehouses, Farms, Offices & Commercial Facilities
