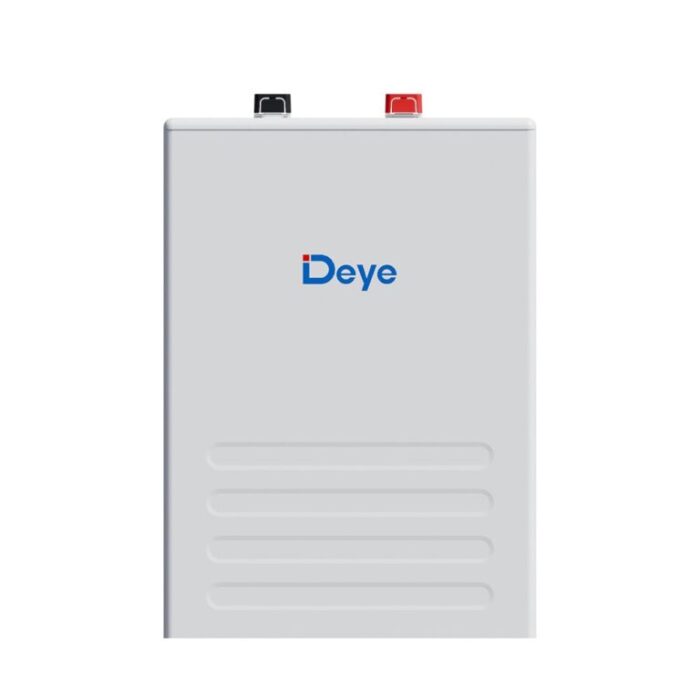

Deye SE-F5 5.12kWh Battery

The Deye SE-F5 5.12kWh Battery is a high-performance lithium battery designed for residential solar energy storage and backup power systems. With 5.12kWh nominal energy, 51.2V nominal voltage and 100Ah capacity, it provides reliable energy storage for compatible low-voltage solar inverter systems.

Built with advanced Lithium Iron Phosphate (LiFePO4) technology, the Deye SE-F5 provides excellent safety, stable performance and a long service life. In addition, its compact design provides flexible installation options for modern home solar systems.

Deye SE-F5 5.12kWh Battery Capacity

The Deye SE-F5 5.12kWh Battery provides 5.12kWh of nominal energy with a 100Ah capacity. Furthermore, it operates at a nominal voltage of 51.2V and has an operating voltage range of 44.8V to 57.6V.

Therefore, the battery is designed for compatible 48V low-voltage hybrid inverter systems. It can store available solar energy for later use while also providing battery power during compatible backup applications.

LiFePO4 Lithium Battery Technology

The Deye SE-F5 uses cobalt-free Lithium Iron Phosphate (LiFePO4) battery chemistry. LiFePO4 technology provides good thermal stability, safety and dependable long-term performance.

Furthermore, the battery provides more than 6,000 cycles at 80% Depth of Discharge (DOD) at 25°C. As a result, the Deye SE-F5 is designed for regular charging and discharging in residential solar energy storage systems.

High Charging and Discharging Performance

Another important feature of the Deye SE-F5 5.12kWh Battery is its high discharge capability. The battery supports a maximum continuous discharge current of 120A (1.2C).

In addition, it supports a maximum continuous charging current of 100A and a peak charging current of 120A for 10 seconds. The battery can also provide a peak discharge current of 150A for 10 seconds.

Therefore, the Deye SE-F5 provides strong charging and discharging performance for compatible solar and backup power systems.

Intelligent Battery Management System

The Deye SE-F5 lithium battery includes an intelligent Battery Management System (BMS). The BMS helps manage battery charging and discharging while protecting the battery cells.

For example, the system provides protection against over-voltage, under-voltage, over-current, short circuits and abnormal temperatures. In addition, active fuse protection provides another layer of battery protection.

Smart Communication and Monitoring

The Deye SE-F5 supports CAN 2.0, RS485 and Bluetooth communication. Therefore, the battery can communicate with compatible equipment for system management and monitoring.

Furthermore, intelligent auto-addressing functionality helps simplify the installation of multiple battery modules. As a result, expanding a compatible battery system can be easier to configure.

Flexible Wall-Mount Installation

The Deye SE-F5 5.12kWh Battery offers several installation options. Depending on the system design, the battery can be wall-mounted, floor-mounted or stack-mounted.

Therefore, installers have greater flexibility when planning residential battery storage systems where available installation space may be limited.

Expandable Solar Battery Storage

The Deye SE-F5 can be used as a single battery or as part of a larger energy storage system. Up to 32 battery units can be connected in parallel.

Consequently, users can begin with one 5.12kWh battery and expand the system when additional storage is required. A system using 32 units provides approximately 163kWh of nominal battery capacity.

Deye SE-F5 5.12kWh Battery Specifications

Model: Deye SE-F5
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Energy: 5.12kWh
Nominal Capacity: 100Ah
Nominal Voltage: 51.2V
Operating Voltage: 44.8V–57.6V
Maximum Continuous Charge Current: 100A
Peak Charge Current: 120A for 10 seconds
Maximum Continuous Discharge Current: 120A
Peak Discharge Current: 150A for 10 seconds
Cycle Life: >6,000 cycles at 80% DOD at 25°C
Communication: CAN 2.0, RS485, Bluetooth
Maximum Parallel Units: 32
Charging Temperature: 0°C to 55°C
Discharging Temperature: -20°C to 55°C
Installation: Wall-mounted, floor-mounted or stack-mounted
Certifications: CE, UN38.3, IEC62619
Warranty: 10 Years

Reliable Solar Battery Storage

Overall, the Deye SE-F5 5.12kWh Battery combines LiFePO4 technology, a smart BMS, high charging and discharging capability and expandable battery storage in one compact solution.

Moreover, its 5.12kWh capacity, 51.2V architecture and 100Ah rating make it suitable for compatible residential solar and backup systems. Therefore, the Deye SE-F5 is a practical option for customers looking for a reliable 5.12kWh lithium battery for solar energy storage.
