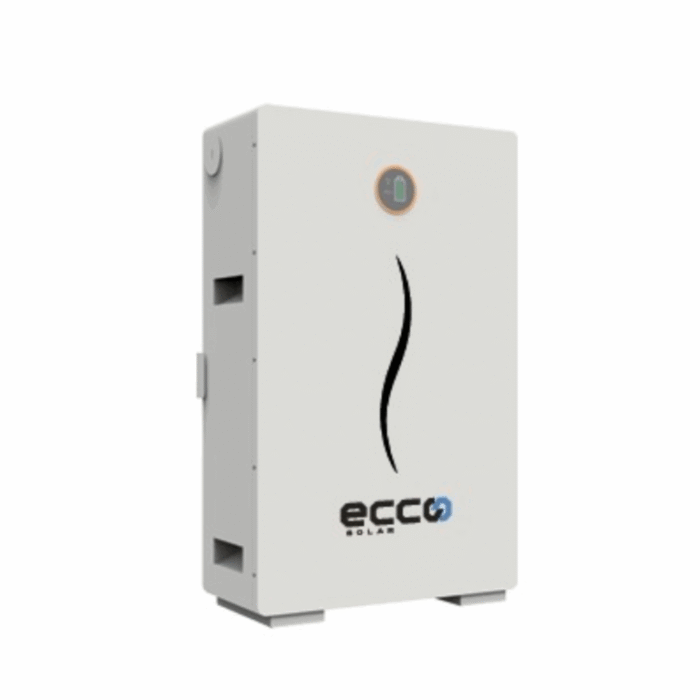

ECCO 15.36kW Lithium Battery 51.2V ELV51300

The ECCO 15.36kWh (ELV51300) is a high-capacity, floor-standing Lithium Iron Phosphate (LiFePO4) battery designed for large residential or commercial energy storage.

Below are the technical specifications for this unit:

Electrical Specifications
Nominal Energy: 15.36 kWh

Nominal Capacity: 300 Ah

Nominal Voltage: 51.2V

Standard Operating Voltage: 44.8V – 56.16V

Standard Charge/Discharge Current: 100A (Recommended)

Max. Continuous Charge/Discharge Current: 180A

Peak Discharge Current: 200A (for 10 seconds)

Performance & Longevity
Chemistry: LiFePO4 (Lithium Iron Phosphate)

Cycle Life: ≥ 6,000 cycles (@ 80% DOD, 0.5C)

Design Life: ~15–20 years

Round-trip Efficiency: ≥ 98%

Depth of Discharge (DOD): 80% – 90% recommended

Physical & Environmental
Installation: Floor-standing (Vertical design)

Dimensions: ~591mm (W) x 157.5mm (D) x 1025mm (H)

Weight: Approx. 128kg – 130kg

Ingress Protection: IP54 (Moderate protection against dust and splashing water)

Operating Temperature: * Charge: 0°C to 55°C

Discharge: -20°C to 60°C

BMS & Connectivity
Integrated BMS: Protection against over-voltage, under-voltage, over-current, short circuit, and temperature fluctuations.

Communication Ports: RS485, CAN, RS232.

Inverter Compatibility: Compatible with most 48V/51V hybrid inverters (Sunsynk, Deye, Victron, Luxpower, etc.).

Scalability: Supports up to 15 or 16 units in parallel for expanded capacity.
